Description
The Hyspin™ HLP-D 68 is a hydraulic oil lubricant based upon highly refined mineral oil enhanced with a zinc additive system. It also contain detergent and dispersant additives.

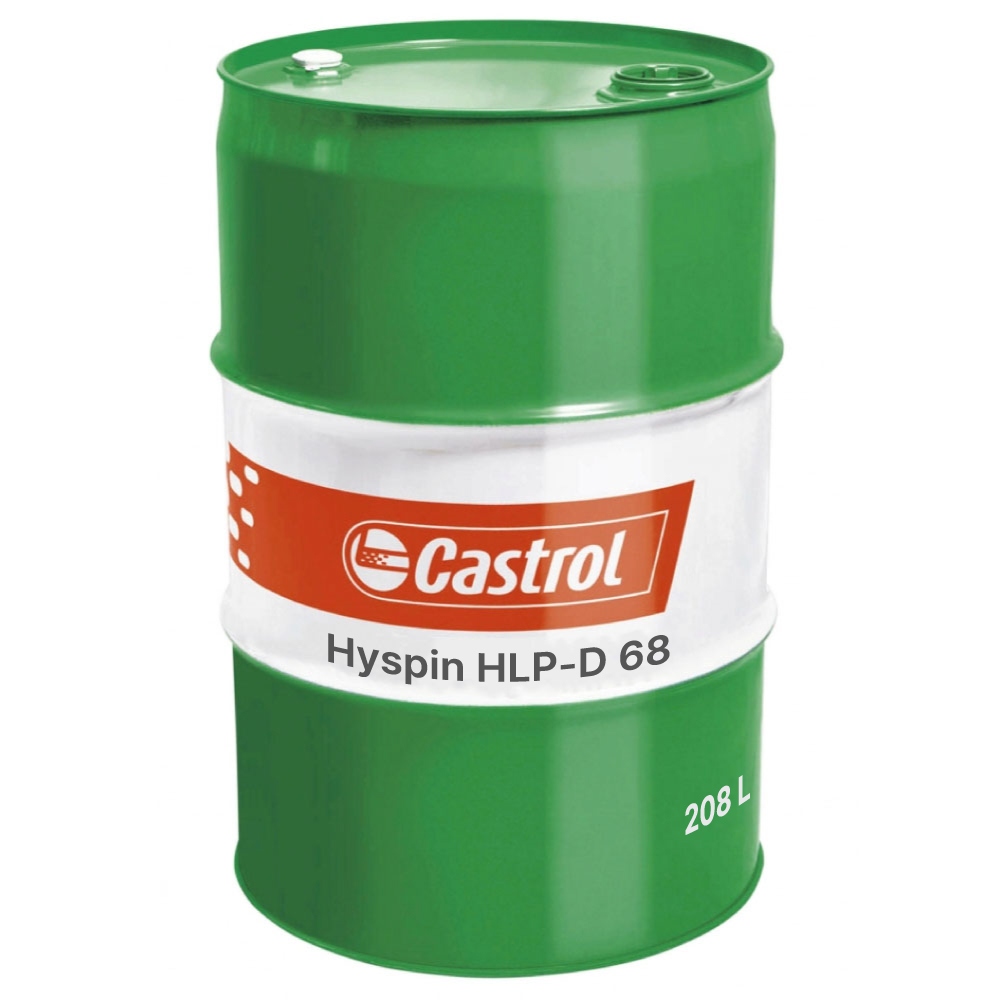

- Pack size: 208 l barrel
- Also available in: 20 l canister
Specifications / Approvals
- DIN 51502 (HLPD)
- ISO 6743/4 (HM)
Application
Hyspin HLP-D oils are for use primarily in machine tool hydraulic systems, gears and clutch drives and in mobile hydraulic systems used outdoors.
These oils can tolerate high levels of water contamination, either from the outdoors environment or by water miscible cutting oils when used in machine tool equipment, and still provide effective lubrication. Such contamination can cause corrosion and seizure of hydraulic components. The detergent /dispersant properties of Hyspin HLP-D oils maintain the performance of hydraulic systems under these circumstances.
In hydraulic cylinders operating at low speeds, Hyspin HLP-D oils prevent erratic movement and stick/slip between seals and shafts, greatly reducing seal wear.
Hyspin HLP-D oils are suitable for mobile equipment where multi-disc clutches are employed, They permit higher torques to be transmitted, and maintain smooth clutch operation, short engagement times, and low rates of clutch wear.
The Hyspin HLP-D range is fully compatible with common seal materials.
Advantages
- Smooth functioning of sliding parts in hydraulic systems and machine tools
- Good surface wetting properties provide smooth sliding of seals on hydraulic pistons and rods and reduces corrosion
- Excellent corrosion protection in arduous conditions
- Maintains performance in ‘wet’ operating conditions, eg outdoor equipment, machining operations
Technical specifications
- Density @ 15°C / 59°F ISO 12185 / ASTM D4052 kg/m3: 880
- Kinematic Viscosity @ 40°C / 104°F ISO 3104 / ASTM D445 mm²/s: 68
- Kinematic Viscosity @ 100°C / 212°F ISO 3104 / ASTM D445 mm²/s: 8.8
- Viscosity Index ISO 2909 / ASTM D2270: >95
- Pour Point ISO 3016 / ASTM D97 °C: -24
- Flash Point – open cup method ISO 2592 / ASTM D92 °C: 230
