Description
Castrol Optigear Synthetic A 320 is a fully synthetic high performance gear oil based on polyalphaolefin with MICROFLUX TRANS®, the load-active additive combination (ISO VG 320).

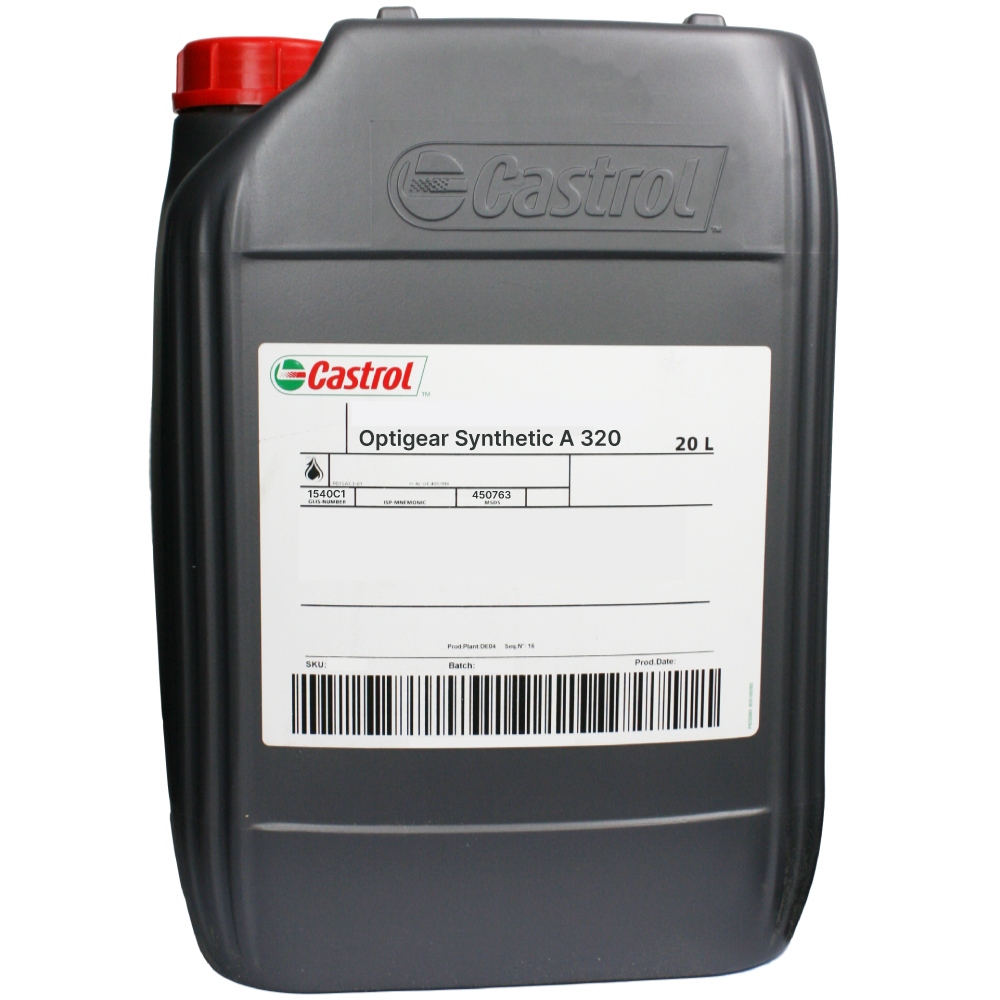

- Pack size: 20 L canister
Applications
- For especially highly loaded industrial gears – in case of great changes in temperature and extreme loads
- For wind power stations, conveyor belts, crane control gears, lifts, rolling mills etc.
- For highly loaded eccentrics, gear couplings, chain drives, robot drives and joints as well as positive power transmissions
- For all types of rolling and sliding bearings, especially for tapered roller bearings in extruders, shaking screens, vibrators or for spindle presses
- For transport systems operated during winter
- Especially suited for arctic countries such as Canada, North America and Scandinavia
Benefits
- good viscosity/temperature behavior, wide range of operating temperature
- excellent low-temperature behavior, easy starting, good fluidity at extremely low temperatures
- optimum wear protection – smoothing of pitting and scoring
- especially low coefficient of friction leading to reduced friction and energy costs, lowering of oil temperatures
- significantly extended oil change intervals, reduced maintenance costs
- shear-stable
- high corrosion protection, compatible with non-ferrous metals
- compatible with conventional paints and sealing materials
Technical specifications
| Manufacturer number | 450763 |
| Base | polyalphaolefin |
| ISO viscosity grade | 320 |
| Color (visual) | dark brown |
| Density at +15°C/+59°F, kg/m³, DIN 51757 | 870 |
| Kinematic viscosity at +40°C/+104°F, mm²/s, DIN EN ISO 3104 | 330 |
| Kinematic viscosity at +100°C/+212°F, mm²/s, DIN EN ISO 3104 | 33 |
| Viscosity index, DIN ISO 2909 | 140 |
| Pour point, °C, DIN ISO 3016 | -36 |
| Pour point, °F | -32.8 |
| Flash point, °C, DIN ISO 2592 | 220 |
| Flash point, °F | 428 |
| Copper corrosion test, DIN EN ISO 2160 | 1a |
| Friction coefficient (SRV® test-run time 5a), μ, DIN E 51834 | 0.055 |
| Wear: ballscar Ø, mm (SRV® test-run time 5a), DIN E 51834 | 0.50 |
| Wear: profile depth Pt, µm (SRV® test-run time 5a), DIN 51354 | 1.0 |
| FZG test A/16.6/140 – Scoring load stage (intensified special test) | > 12 |
| FZG micropitting test – Micropitting load carrying capacity (FVA No. 54) | > 10 |
| FE8 bearing test D 7.5/80-80 – Roller wear, mg, DIN 51354-2 | 4.5 |
| FE8 bearing test D 7.5/80-80 – Cage wear, mg, DIN 51354-2 | 43.2 |
Description
OPTIGEAR® SYNTHETIC A are fully synthetic high performance gear oils with MICROFLUX TRANS® additives. They offer optimum wear protection under very extreme thermal loads and operating conditions such as vibrations, oscillating motions and shock loads. The wide range of temperature – especially in case of low starting temperatures – and the high load carrying capacity are special assets of these industrial gear oils. Thermally and mechanically stable polyalphaolefin and the MICROFLUX TRANS® additive combination adjust themselves to the changing operating conditions and actively prevent wear.
Hazard statements (H-statements)
- H317: May cause an allergic skin reaction.
- H412: Harmful to aquatic life with long lasting effects.
Precautionary statements (P-statements)
Prevention:
- P280: Wear protective gloves.
- P273: Avoid release to the environment.
- P261: Avoid breathing vapours.
Response:
- P302 + P352: IF ON SKIN: Wash with plenty of soap and water.
- P333 + P313: If skin irritation or rash occurs: Get medical advice/attention.
- P362 + P364: Take off contaminated clothing and wash it before reuse.
Disposal:
- P501: Dispose of contents/container in accordance with local/regional/national/international regulations.
