Description
Castrol Hyspin™ HLP-Z 46 is based upon highly refined mineral oil enhanced with a stabilised zinc additive system.

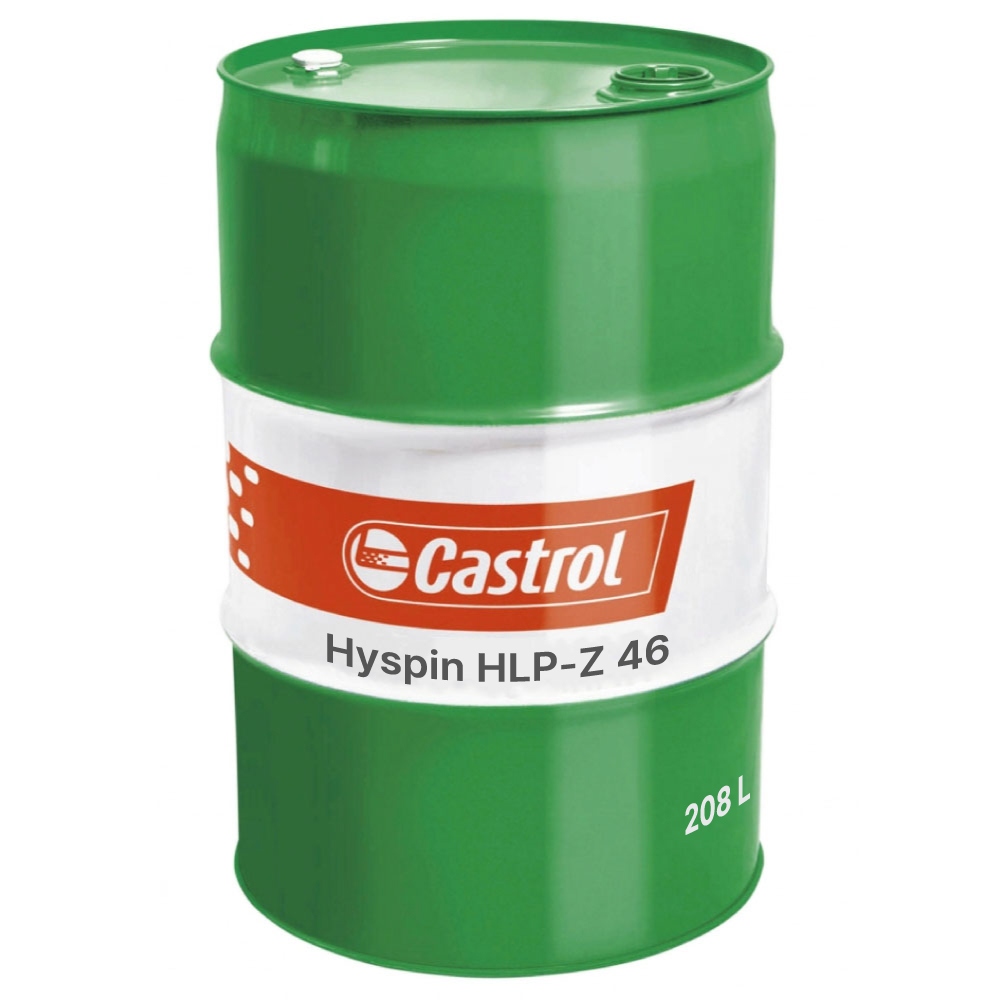

- Pack size: 208 l drum
Applications
Castrol Hyspin HLP-Z is primarily for use in hydraulic equipment, but is suitable for other duties in which lubricants with good oxidation stability and lubrication performance are required. The quality of its base oils and additives permits the application of Hyspin HLP-Z in lightly loaded gears and for use as circulating oil in applications where a rust and oxidation inhibited oil is required. The range is fully compatible with elastomer materials commonly used for static and dynamic seals, such as nitrile, silicone and fluorinated (e.g. Viton) polymers.
Specifications and Approvals
- DIN 51502 classification – HLP
- ISO 6743/4 – Hydraulic Oils Type HM
- Meets (for appropriate viscosity grade): DIN 51524 part 2; ASTM D6158 HM; ISO 11158 HM; GB 111118.1 L-HM (General)
Features
- Good wear and corrosion protection
- Good thermal and oxidative stability
- High filterability characteristics
- Good water separation
Technical specifications
| GLISS number | 1607AF |
| Density @ 15°C | 879 kg/m³ |
| Kinematic viscosity @ 40°C | 46 mm²/s |
| Kinematic viscosity @ 100°C | 6.5 mm²/s |
| Viscosity Index | 93 |
| Pour Point | -30 °C |
| Flash Point – open cup | 225 °C |
| Foam Sequence I – tendency/stability | 30/0 ml/ml |
| Water Separation @ 54°C (40/37/3) | 15 min |
| Air Release @ 50°C | 4 min |
| Copper Corrosion, 3 h @ 100°C | Class 1 |
| Rust test – distilled water (24 h) | Pass |
| FZG Gear Scuffing test – A/8.3/90 | >11 |
Product information
Hyspin HLP-Z is primarily for use in hydraulic equipment, but is suitable for other duties in which lubricants with good oxidation stability and lubrication performance are required. The range is fully compatible with elastomer materials commonly used for static and dynamic seals, such as nitrile, silicone and fluorinated (e.g. Viton) polymers.
Hyspin HLP-Z46, Hyspin HLP-Z-46
