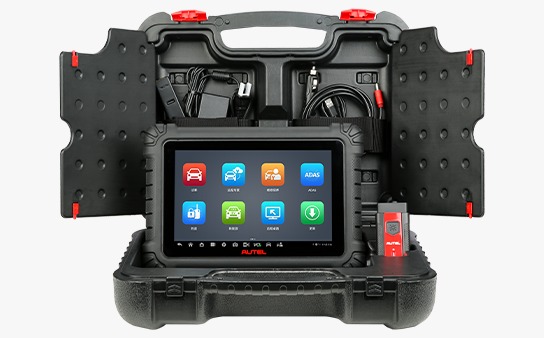

Autel Maxisys MS906 Max Professional Diagnostic Tablet

Product Specifications Manufacturer
Autel Condition New Weight 3200 g
Autel Maxisys MS906 Max Professional Diagnostic Tablet 2 Years Update Subscription 1 Year Warranty
Autel Maxisys MS906 Max Professional Diagnostic Tablet Description:
New Autel MaxiSYS 906MAX is a 10.1-inch Android-based wireless diagnostics and service tablet with professional capabilities. Featuring industry-leading coverage of U.S., Asian, and European vehicles, 1996 and newer. Perform Pre- and Post-Scans, all-systems diagnostics including reading and erasing codes, viewing and graphing Live Data, and performing bi-directional tests and services including Active Tests and Special Functions. Advanced functionality includes coding and adaptations. Features extensive, vehicle-specific, direct-to-system service and maintenance tasks. Quickly execute 40 service tasks including oil light reset, DPF regen, steering angle sensor reset, airbag reset, occupancy seat reset and brake bleed. Includes Bluetooth-enabled MaxiVCI V200 supporting standard and advanced vehicle communication protocols. Easily share customizable reports via email and text. Supports direct battery, starter and charging system testing, and videoscope capability with additional purchases.
Diagnostic Tools from AUTEL with Product website www.danachrisuae.
This Weight Product: 3200g
Note: 2 Years update subscription is included with the device.
Note: Ip Restriction (works only in India, Middle East and Africa).
Autel Maxisys MS906 Max Professional Diagnostic Tablet User Manual


·Advanced diagnostic tablet compatible with U.S., Asian and European vehicle, 1996 and newer
·10.1-inch Wireless Touchscreen tablet with Bluetooth-enabled MaxiVCI V200
·Octa-Core Processor/128 GB memory / 4 GB RAM
·Performs all system scan with ADAS identification/ Customizable Pre & Post scans, Read/Erase Codes, View Freeze Frame  and Live Data
·Bi-directional control capability including Active test/Performs coding and adaptations
·AUTO SCAN 2.0 maximize diagnostics capabilities with faster all system scan
·Extensive Service Menu: Quick access to 40+ of the most common maintenance tasks
·Features Wi-Fi print functionality, and supports Videoscope, and Battery testing
·Supports the latest communication protocols, including DoIP and CAN FD
·One-touch report sharing via QR codes, text messages, or emails
·ADAS Calibration-capable with software upgrade and Autel Calibration System purchase

Autel Maxisys MS906 Max Professional Diagnostic Tablet Specifications:
Model
MS906 MAX
Operating System
Android 10
Processor
Octa-core Processor
Memory
4 GB RAM & 128 GB On-board Memory
Battery
11600 mAh 3.85 V Lithium-polymer Battery
Display
10.1-inch LCD Capacitive Touchscreen with 1920 x 1200
Resolution
Camera (Rear)
13 MP
Connectivity
Wi-Fi (802.11 a/b/g/n/ac)
BT 5.0 (BR/EDR + BLE)
GPS
USB 2.0 (Two USB Host Type A, one Mini USB)
SD Card (Support up to 256 GB)
Audio Input / Output
Microphone
Dual Speakers
3-band or 4-band 3.5 mm Headset Jack
Operating Temp.
0 °C to 50 °C (32 °F to 122 °F)
Storage Temp.
-10 °C to 60 °C (14 °F to 140 °F)
Protocols
ISO13400, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO-
14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-
11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,
ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAEJ2809
(Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567
(CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW
DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,
SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
Autel Maxisys MS906 Max Professional Diagnostic Tablet Packing List:
