Description

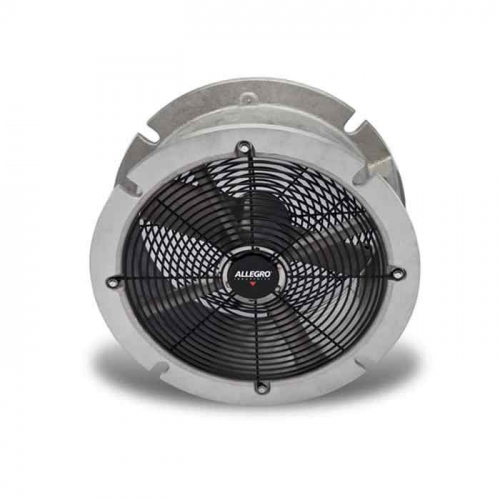

The Allegro Industries 9518-24 Jet Fan is a 24″ pneumatic jet fan/ventilation blower engineered to move large volumes of air using compressed air rather than electricity. When compressed air is directed through nozzles at the tips of each blade, it drives the fan at high speed, generating up to approx. 16,000 CFM of airflow at 100 psig inlet pressure — making it highly effective for ventilation, fume exhaust, and air circulation in demanding work environments.
Key Features
-
Air-Driven Power: Operates using compressed air, eliminating dependence on electrical power in hazardous or explosive environments.
-
High Airflow: Capable of producing up to ~16,000 CFM at 100 psig for efficient ventilation and airflow movement.
-
Heavy-Duty Construction: Rugged aluminum fan and housing with spark-resistant design for enhanced durability and safety.
-
Sealed Bearings: Permanently lubricated, sealed bearings and a stainless-steel shaft reduce maintenance and resist internal corrosion.
-
Versatile Use: Can function as either a blower or exhaust fan by reversing mounting orientation.
-
Easy Portability: Includes recessed carry handles and ability to roll the unit for transport between job sites.
-
1″ Side-Mounted Inlet: Standard 1″ NPT inlet connector for compressed air supply.
-
Safety Screens: Meets OSHA standard safety screening for secure operation.
Typical Uses
-
Ventilation of confined spaces: tanks, vaults, tunnels
-
Exhaust of fumes and dust from work areas
-
Air circulation for industrial, utility, and construction environments
-
Sites where electrical power is unsafe or unavailable
