XTOOL X100 PADS PAD S Key Programmer and diagnostic

Description

Product Specifications

Manufacturer	Xtool
Condition	New
Weight	3000 g

XTOOL X100 PADS PAD S Key Programmer with Built-in CAN FD DOIP Supports 23 Service 3 Year Free Update

---

XTOOL X100 PADS Key Programmer Description:

XTOOL X100 PAD S is an advanced tablet scan tool based on the Android operating system. 2023 New release key programmer XTOOL X100PAD S is an upgraded version of XTOOL X100PAD PLUS. X100PAD S added CANFD and DOIP protocol.endoscope, stent. The memory, battery, USB, WiFi, and appearance have all been upgraded.

Key Programming Tools From X-Tool with  danachris provide more valuable suggestions
This Weight Product: 3000g

XTOOL X100 PADS Key Programmer Highlights:

Update version of X100 PAD and X100 PAD Plus
With built-in CAN FD and DoIP protocols: With CAN FD protocol covers for GM MY2020+ models. No extra CAN FD adapter needed. With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.
Full system diagnostic + AutoVin + 23 Special Functions + Advanced Key Programming (Need KC100)
15 Languages: English, German, Spaish, French, Polish, Portuguese, Russian, Italian, Turkey, Traditional Chinese, Japanese, Korean Vietnamese, Arabic, Finnish.
Upgraded Hardware: 2G+64G storage, 5000mAh battery, 2.4G/5G WIFI, USB 2.0, movable navigation bar, electronic user manual, with bracket.

XTOOL X100 PADS Key Programmer Functions:

Diagnostic system: Full system full function If you have any inquiry, please feel free to contact us at any point of time.danachris

Basic function: OBDⅡ, Auto VIN, Read ECU Information, Read code, Clear code, Read live data

Special Functions: Seat Match, Suspension, instrument cluster, EEPROM, Power Balance, BMS Reset, Transport Mode, Throttle, Key Programmer, ABS Bleeding, Gearbox Match, Electronic Pump Activation, Gear Learning, Tire Upgrade, SAS, Windows Initialization, Oil Reset, Airbag Reset, Coding, EPB Injector, Headlight

OE-Level Full Systems Diagnostic with danachris provide more valuable suggestions
This Weight Product: 12000g

• WhatsApp+971582211423
• phone +97143422571
• Email info@danachrisuae.com
• website www.danachrisuae.com

XTOOL X100PADS automotive diagnostic scan tool enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information as trouble and event codes and live data for various vehicle control systems, such: ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.

• Read/Clear Codes
• View the Live Data stream
• View the Freeze Frame of faults
• Perform Active Tests
• Read ECU Information

23+ MOST USEFUL SERVICE FUNCTIONS

• ✅ Oil Reset: Reset service intervals after oil change and turn off the oil light.
• ✅ EPB Reset: Reset brake pads after replacement of brake system.
• ✅ BMS Reset: Register the new battery to the CAR MO after replacement.
• ✅ Throttle Relearn: Enables you to make initial settings to throttle to adjust the amount of air intake.
• ✅ EEPROM Adapter: Used to read, write and backup the EEPROM chip inside the immobilizer module.
• ✅ Injector Coding: Coding injectors after replacement.
• ✅ ABS Bleeding: Perform ABS Brake Bleed function to cycle ABS pump to bleed the air out of the ABS.
• ✅ Gearbox Match: Reset the adaptive shifting points in your automatic Transmission Control Unit.
• ✅ Headlight: Initialize the adaptive headlight system.
• ✅ Air Suspension: Calibrate the suspension height.
• ✅ Window Initialization: Match windows to restore initial memory of the CAR MO and restore the power window.
• ✅ Airbag Repair: Allows you resets the airbag data to clear the airbag collision/crash data.

More Functions Include: TPMS Reset, Seat Calibration, Cylinder, Transport Mode, Tire Upgrade, Electronic Pump Activation, DPF/GPF, SAS, Gear Learning, EPS, etc.

Note: Please provide your specific car model and VIN number to check compatibility before purchasing.

Built-in CAN FD & DoIP Protocol
Support CAN FD Protocol for GM,For GMC,For Cadillac, For Chevrolet,For Buick Cars after 2020. Support DoIP for BMW E/F/G Chassis, for Jaguar/Land Rover.

Advanced IMMO/Key Programming/Key Coding (X100PADS + EEPROM Adapter)

The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation, Check number of keys, generate key, Add key, All key lost.

• Read Pin code
• Generate key, Key Refresh
• Make Dealer Key
• All Key Lost
• Immobilizer Data Reading & Writing
• Backup IMMO Data
• Remote Frequency Detection
• Immobilizer Module Replacement
• IMMO ECU Reset & Coding
• Mercedes infrared Key Read/Write

– And more…

Note: KC100 is Not Included, needs to be Purchased Separately.
Other Features:

8 IN 1 LVE DATA DISPALY: Reads, graphs and combines 8 independent streams of sensor data. Real-time data export to CSV file and data recording, playback, viewing. Allows you to export live data to a csv file for storage and comparison over time, or to view its graphical changes and textual readouts later.

FAST AUTO VIN SCAN: X100PADS is based on the latest VIN auto-scan function, which can quickly identify the vehicle and scan all diagnosable ECUs and run diagnostics on the selected system. For vehicles that do not support the automatic VIN scan feature, you can manually enter the vehicle VIN.

Record & print report: Share Report to mobile phone, tablet or computer via Bluetooth Print Report via connecting Printer

3 YEARS FREE UPDATE: 3 Year Free Update, one-click update when the device is connected to the network, download the latest model, update the latest functions, and more functions are under development

Multi-language: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese.

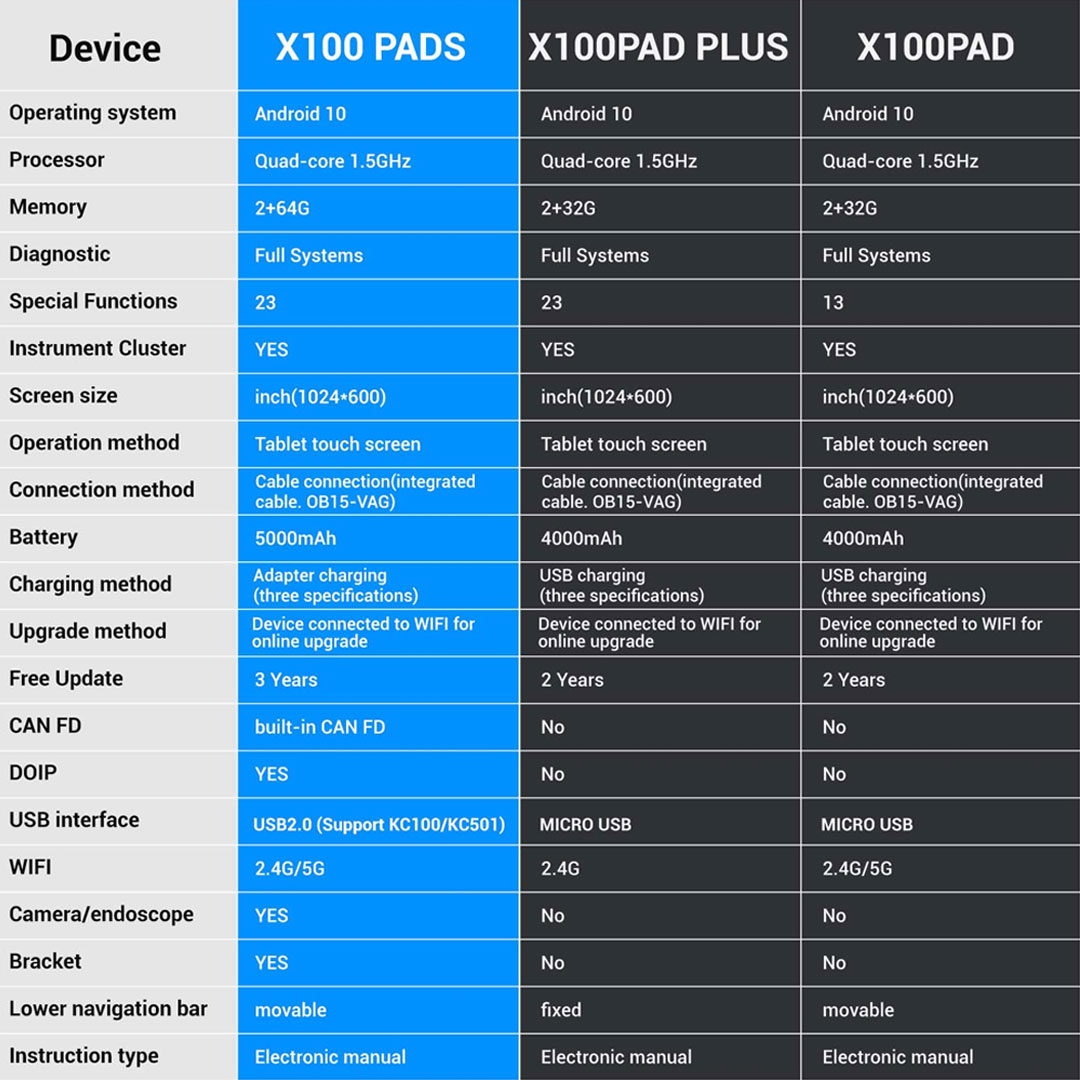

Xtool X100 PADS vs X100 PAD vs X100 PAD Plus

XTOOL X100 PADS Key Wide Vehicle Coverage:

XTOOL X100PADS Key Programming Tool is specially customized for large Maintenance Shops, Workshops, Car Dealers, Auto Mechanic. Work for 12V Petrol Sedans, SUVs, Minivans and Light-Duty Trucks across the globe, including:

Asia: For Toyota, For Lexus, For Honda, For Acura, For Mazda, For Nissan, For Infiniti, For Mitsubishi, For Subaru, For Suzuki, For Kia,For Hyundai, For Daewoo, For SSANGYONG, For Proton, etc

Europe: for Audi, For VW, For Skoda, For Seat, For Porsche, For Opel, For Citroen, For Peugeot, For Jaguar, For Land Rover, For Lincoln, For Renault, etc

America: For GM, For Cadillac, For Buick, For Chrysler, For Ford etc

China: For Great Wall, For Chery, For Brilliance-auto, For Geely, For LIFAN, For HAFEI, For CHANGAN, For LANDWIND, For BYD , For JAC, etc.

ABARTH	JAGUAR	VW	ACURA	NISSAN-GTR
ALFAROMEO	LANCIA	ZAZ	HONDA	RENAULT SAMSUNG
ASTON MARTIN	LAND ROVER	BUICK	HYUNDAI	SSANG YONG
AUDI	MASERATI	CADILIAC	HYUNDAICC	SUBARU
BENZ	MINI	CHEVROLET	INFINITI	SUZUKI
BMW	OPEL	CHRYSLER	ISUZU	TOYOTA
CITROEN	PAZ	DODGE	KIA	BYD
DACIA	PEUGEOT	FORD(USA)	LEXUS	CHERY
FERRARI	PORSCHE	GM	MAZDA	GEELY
FIAT	RENAULT	GMC	MITSUBISHI	GREAT WEII
FORD（EU）	SEAT	HUMMER	NISSAN	JAC
GAZ	SKODA	JEEP	Ford（AU）	LIFAN
IZH	SMART	LINCOLN	PONTIAC	SATURN
VOLVO	UAZ

XTOOL X100 PADS Key Programmer Specifications: website www.danachrisuae.com

Items	Description
Operating System	Android 10
Processor	Quad Core 1.5Ghz
Memory	2+64G
Screen Size	7 Inches (1024*600)
Mode of Operation	Tablet Touch Screen
Connection Method	WIFI Connection
Battery Capacity	5000 mAh
Upgrade Method	WIFI Online Upgrade
Dimension (L*W*H)	37*11*29cm
Upgrade Period	3 Years
Charging Method	Adapter Charging
Support	CAN FD & DOIP Function
USB Interface	USB2.0 (Supports KC100/KC501)
WIFI	2.4G/5G

XTOOL X100 PADS Key Programmer Package Includes: Email info@danachrisuae.com

Category	No.	Name	QTY
Accessories	1	Quick Start Guide	1
	2	Carton	1
	3	Tool Kit	1
	4	Packing List	1
Main Units	5	X100PADS Main Unit	1
	6	EEPROM-ADAPTER	1
	7	EEPROM-XB-V1	1
	8	Charger UE	1
	9	Charger US	1
	10	Charger UK	1
Test Connectors	11	USB3.0 Data Cable	1
	12	DB15 to OBD2-16 Main Cable	1
	13	Power Charger	1
