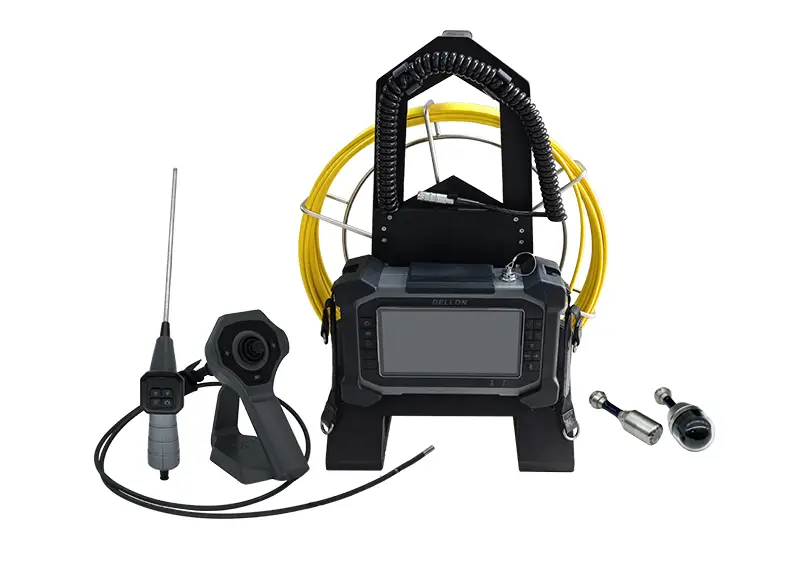

Dellon PTZ41 Pipe Inspection Camera
The binocular lens adopts megapixel high-definition solution, high-sensitivity CMOS sensor, and automatic photosensitive
The binocular lens adopts megapixel high-definition solution, high-sensitivity CMOS sensor, and automatic photosensitive
Dellon PTZ41 Pipe Inspection Camera - Image 4

Dellon PTZ41 Pipe Inspection Camera

Dellon PTZ41 is a multifunctional industrial pipe inspection camera with high cost performance. Adopt advanced technology, one monitor compatible with pipe camera, articulation borescope probe, rigid borescope probe. Equipped with HD lens, the detection range covers 10mm to 300mm diameter pipe, standard 30m detection line, customized length is up to 60m. Easy to use, flexible, can solve a variety of user needs. Wide range of applications, suitable for different industry users to choose.

Product Features：

  • High definition LCD, 7 inches touch screen, resolution 1280*720
  • HD shooting system, high definition camera, pixels: 1000,000
  • Long detection distance, standard length 30m, and 60m customized
  • Suitable for visual inspection of various industrial pipelines with a diameter range of 10mm-300mm
  • HDMI output interface

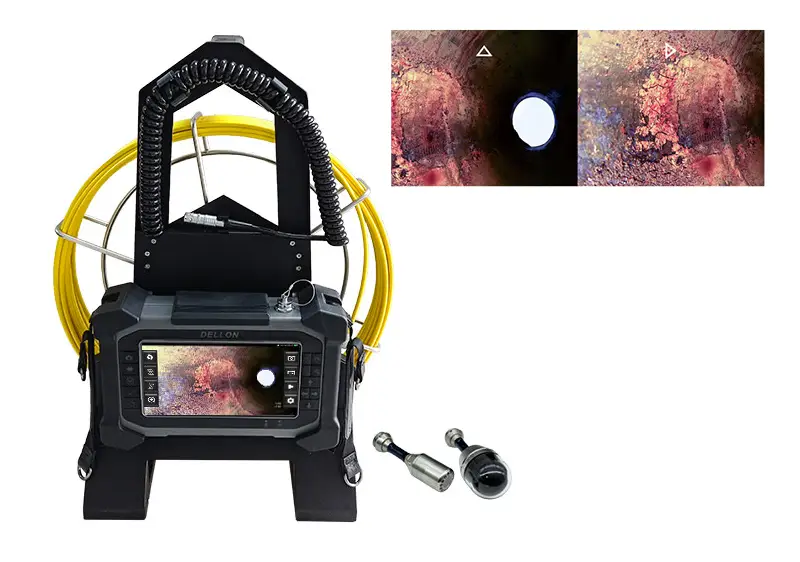

  • Split screen display for the rigid probe with front and side view
  • Support negative flim and ruler function and so on

20 in stock

View List
SKU: PTZ41001 Category: Tag: Brand:

Description

The Dellon PTZ41 is a multi-functional, industrial-grade pipe inspection camera system designed for visual inspection and nondestructive testing of pipelines, confined spaces, and other hard-to-reach areas. It combines high-definition imaging, flexible probe options, and a rugged portable controller to support a wide range of inspection tasks across industries.

 Key Features

All-in-One Inspection System

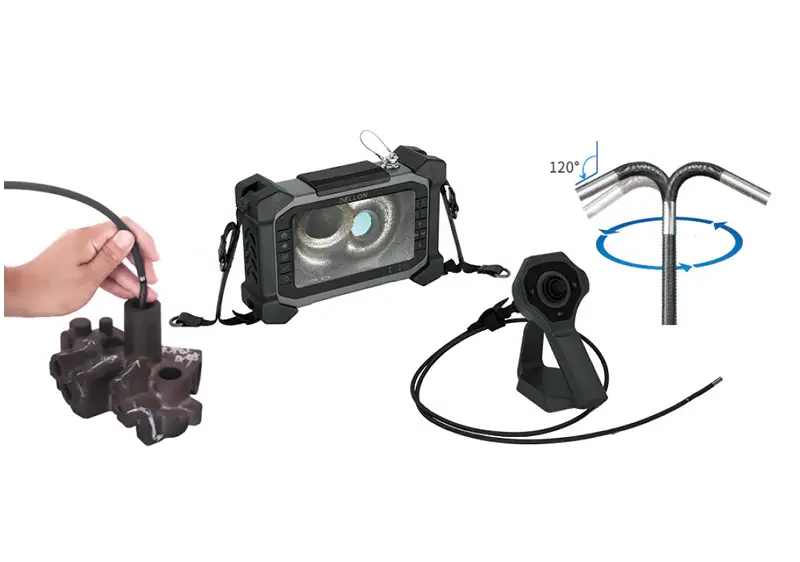

The PTZ41 integrates a single controller that can work with multiple types of probes, including PTZ rotating cameras, wide-angle cameras, articulation videoscopes (flexible borescope), and rigid borescope probes. This makes it versatile for inspecting pipes of different sizes and configurations.

 High-Definition Display & Recording

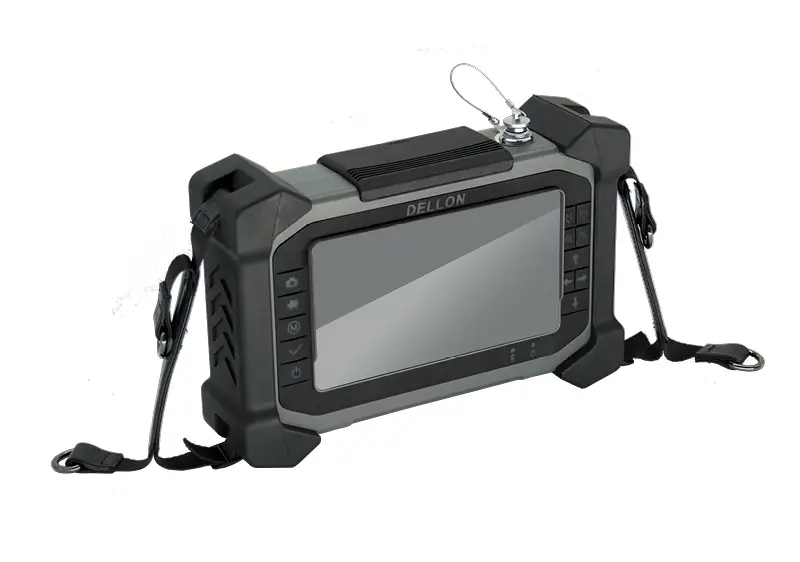

  • 7-inch high-brightness LCD screen with HD resolution for real-time viewing.

  • Touchscreen + button operation for easy navigation and control.

  • Photo and video capture with date/time stamping and on-board storage (SD card).

  • HDMI output for external display.

 Powerful Imaging & Probes

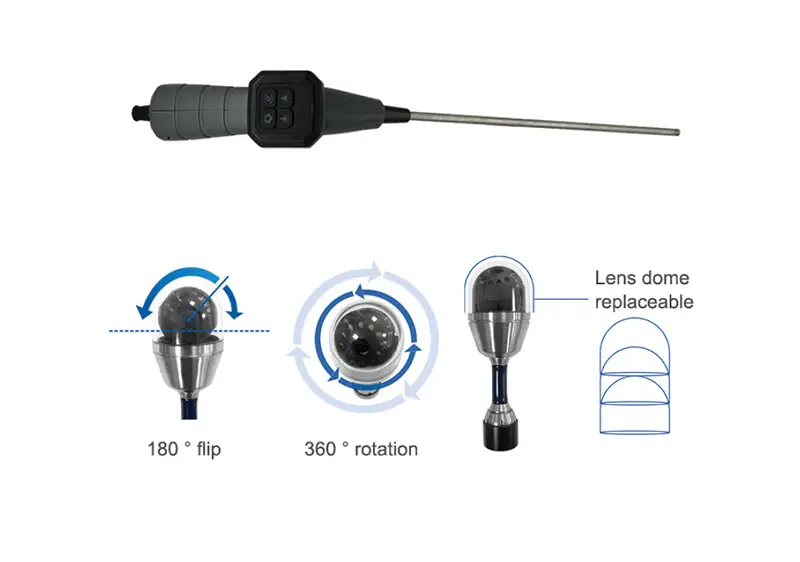

  • Rotating PTZ camera (≈40 mm) with 360° rotation and 180° flip for comprehensive inspection inside pipes.

  • Wide-angle camera (≈24 mm) for broader field of view.

  • Articulation probe with four-way steering (joystick control) for inspecting bends and complex areas.

  • Rigid borescope probe for straight hole inspection.

 Long Detection Distance

  • Standard push-rod cable length: 30 m (with counter).

  • Optional customized length up to 60 m for deeper inspections.

  • Suitable for pipelines with diameters roughly 10 mm to 300 mm.

Lighting & Visibility

  • Built-in adjustable LED illumination ensures clear visibility inside dark pipes.

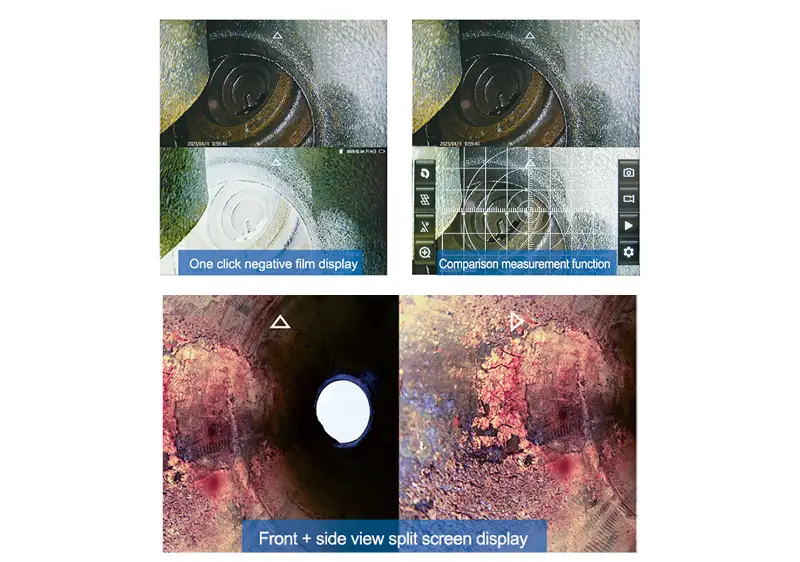

  • Support for split-screen display with dual-lens probes showing front and side views simultaneously.

Portability & Durability

  • Rugged portable controller with removable lithium battery (>4 hours runtime).

  • Push-rod cable reel and accessories designed for field use.

  • Many components rated for water resistance (e.g., cameras with IP-rated protection).

Typical Applications

The Dellon PTZ41 is used across multiple industries where visual inspection without disassembly is essential:

  • Industrial pipelines (chemical, petrochemical, manufacturing)

  • Automotive and machinery inspection

  • Aviation and aerospace maintenance

  • Shipbuilding and marine inspections

  • Construction and specialist surveying

  • Quality control and nondestructive testing (NDT)

What’s Included (Typical)

  • PTZ41 portable controller with integrated display

  • Rotating PTZ camera head and wide-angle camera

  • Articulation videoscope and rigid borescope probes

  • Push-rod cable reel (30 m standard)

  • Removable rechargeable battery

  • SD card for storage

  • Accessories (joystick, cables, reel case)
